Form A geschweißt oder nahtlos
analog zu EN 10253 / DIN 2605
Werkstoff-Nr. 1.4301 / 1.4404/ 1.4541 / 1.4571 / S235 / P235GH

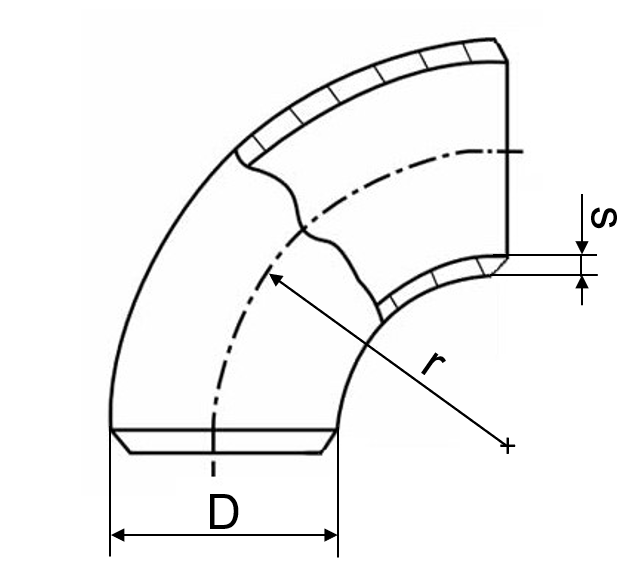

Darstellung und Maße können abweichen
Form A, geschweißt
| Art.-Nr. [1.4571] | D [mm] | s [mm] | r [mm] | m [kg] |
| 26057121320BA2 | 21,3 | 2,0 | 25,0 | 0,03 |
| 26057121326BA2 | 2,6 | 0,03 | ||
| 26057126920BA2 | 26,9 | 2,0 | 25,0 | 0,04 |
| 26057126926BA2 | 2,6 | 0,05 | ||
| 26057133720BA2 | 33,7 | 2,0 | 28,0 | 0,06 |
| 26057133726BA2 | 2,6 | 0,07 | ||
| 26057142420BA2 | 42,4 | 2,0 | 32,0 | 0,10 |
| 26057142426BA2 | 2,6 | 0,13 | ||
| 26057148320BA2 | 48,3 | 2,0 | 38,0 | 0,14 |
| 26057148326BA2 | 2,6 | 0,18 | ||
| 26057160320BA2 | 60,3 | 2,0 | 51,0 | 0,23 |
| 26057160326BA2 | 2,6 | 0,29 | ||
| 26057176120BA2 | 76,1 | 2,0 | 63,0 | 0,36 |
| 26057176126BA2 | 2,6 | 0,47 | ||
| 26057188920BA2 | 88,9 | 2,0 | 76,0 | 0,57 |
| 26057188923BA2 | 2,3 | 0,59 | ||
| 26057188926BA2 | 2,6 | 0,66 | ||
| 260571114320BA2 | 114,3 | 2,0 | 102,0 | 1,13 |
| 260571114326BA2 | 2,6 | 1,16 | ||
| 260571114330BA2 | 3,0 | 1,32 | ||
| 260571139730BA2 | 139,7 | 3,0 | 127,0 | 2,03 |
| 260571139740BA2 | 4,0 | 2,67 | ||
| 260571168326BA2 | 168,3 | 2,6 | 152,0 | 2,58 |
| 260571168330BA2 | 3,0 | 2,95 | ||
| 260571219130BA2 | 219,1 | 3,0 | 203,0 | 5,14 |
| 260571219140BA2 | 4,0 | 6,85 |
Form A, nahtlos
| Art.-Nr. [1.4571] | D [mm] | s [mm] | r [mm] | m [kg] |
| 2605N21320BA2 | 21,3 | 2,0 | 25,0 | 0,03 |
| 2605N21323BA2 | 2,3 | 0,03 | ||
| 2605N21326BA2 | 2,6 | 0,03 | ||
| 2605N21332BA2 | 3,2 | 0,04 | ||
| 2605N26923BA2 | 26,9 | 2,3 | 25,0 | 0,05 |
| 2605N26926BA2 | 2,6 | 0,05 | ||
| 2605N26929BA2 | 2,9 | 0,06 | ||
| 2605N26932BA2 | 3,2 | 0,07 | ||
| 2605N26940BA2 | 4,0 | 0,09 | ||
| 2605N33726BA2 | 33,7 | 2,6 | 28,0 | 0,09 |
| 2605N33732BA2 | 3,2 | 0,11 | ||
| 2605N33736BA2 | 3,6 | 0,13 | ||
| 2605N33740BA2 | 4,0 | 0,14 | ||
| 2605N42426BA2 | 42,4 | 2,6 | 32,0 | 0,15 |
| 2605N42436BA2 | 3,6 | 0,20 | ||
| 2605N42440BA2 | 4,0 | 0,22 | ||
| 2605N42445BA2 | 4,5 | 0,25 | ||
| 2605N42450BA2 | 5,0 | 0,27 | ||
| 2605N48326BA2 | 48,3 | 2,6 | 38,0 | 0,20 |
| 2605N48332BA2 | 3,2 | 0,24 | ||
| 2605N48336BA2 | 3,6 | 0,26 | ||
| 2605N48340BA2 | 4,0 | 0,29 | ||
| 2605N48345BA2 | 4,5 | 0,32 | ||
| 2605N48350BA2 | 5,0 | 0,36 | ||
| 2605N60329BA2 | 60,3 | 2,9 | 51,0 | 0,35 |
| 2605N60332BA2 | 3,2 | 0,39 | ||
| 2605N60336BA2 | 3,6 | 0,43 | ||
| 2605N60340BA2 | 4,0 | 0,48 | ||
| 2605N60345BA2 | 4,5 | 0,53 | ||
| 2605N60350BA2 | 5,0 | 0,59 | ||
| 2605N60356BA2 | 5,6 | 0,65 | ||
| 2605N60363BA2 | 6,3 | 0,72 | ||
| 2605N76129BA2 | 76,1 | 2,9 | 63,0 | 0,58 |
| 2605N76136BA2 | 3,6 | 0,71 | ||
| 2605N76140BA2 | 4,0 | 0,78 | ||
| 2605N76145BA2 | 4,5 | 0,87 | ||
| 2605N76150BA2 | 5,0 | 0,96 | ||
| 2605N76156BA2 | 5,6 | 1,07 | ||
| 2605N76163BA2 | 6,3 | 1,19 | ||
| 2605N76171BA2 | 7,1 | 1,33 | ||
| 2605N88932BA2 | 88,9 | 3,2 | 76,0 | 0,88 |
| 2605N88940BA2 | 4,0 | 1,09 | ||
| 2605N88945BA2 | 4,5 | 1,21 | ||
| 2605N88950BA2 | 5,0 | 1,34 | ||
| 2605N88956BA2 | 5,6 | 1,49 | ||
| 2605N88963BA2 | 6,3 | 1,66 | ||
| 2605N88980BA2 | 8,0 | 2,07 | ||
| 2605N114336BA2 | 114,3 | 3,6 | 102,0 | 1,62 |
| 2605N114340BA2 | 4,0 | 1,79 | ||
| 2605N114345BA2 | 4,5 | 2,01 | ||
| 2605N114356BA2 | 5,6 | 2,48 | ||
| 2605N114363BA2 | 6,3 | 2,77 | ||
| 2605N114371BA2 | 7,1 | 3,10 | ||
| 2605N114388BA2 | 8,8 | 3,78 | ||
| 2605N139740BA2 | 139,7 | 4,0 | 127,0 | 2,79 |
| 2605N139745BA2 | 4,5 | 3,12 | ||
| 2605N139750BA2 | 5,0 | 3,46 | ||
| 2605N139763BA2 | 6,3 | 4,31 | ||
| 2605N139771BA2 | 7,1 | 4,83 | ||
| 2605N139780BA2 | 8,0 | 5,41 | ||
| 2605N1397100BA2 | 10,0 | 6,66 | ||
| 2605N168345BA2 | 168,3 | 4,5 | 152,0 | 4,43 |
| 2605N168356BA2 | 5,6 | 5,47 | ||
| 2605N168363BA2 | 6,3 | 6,13 | ||
| 2605N168371BA2 | 7,1 | 6,87 | ||
| 2605N168380BA2 | 8,0 | 7,70 | ||
| 2605N1683110BA2 | 11,0 | 10,40 | ||
| 2605N219163BA2 | 219,1 | 6,3 | 203,0 | 10,9 |
| 2605N219180BA2 | 8,0 | 13,70 | ||
| 2605N219188BA2 | 8,8 | 15,10 | ||
| 2605N2191100BA2 | 10,0 | 17,00 | ||
| 2605N2191125BA2 | 12,5 | 21,00 |
